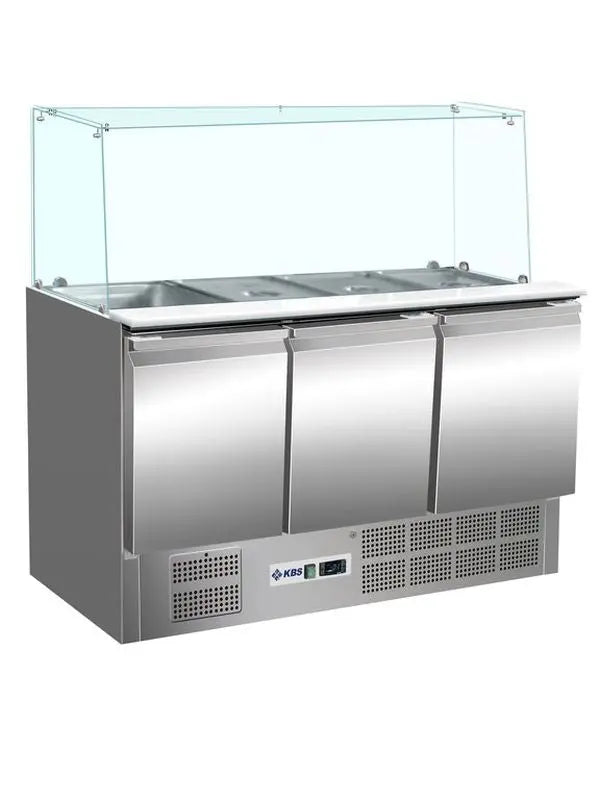

Saladette straight glass construction KBS 904

Saladette KBS 904 with straight glass top – Efficient cooling and presentation in one unit

The Saladette KBS 904 combines powerful cooling with an elegant presentation surface thanks to its straight glass design. This model is specifically designed for the catering industry and offers an optimal solution for storing and presenting food.

Features and functions of the Saladette KBS 904

• Straight glass construction:
  The saladette features a straight glass structure, making it ideal for self-assembly. The glass structure allows for an attractive presentation of chilled food while simultaneously protecting it from external elements.

• Efficient insulation:
  With 45 mm of insulation, the Saladette KBS 904 ensures low energy consumption and a constant temperature inside.

• Optimal cooling performance:
  The evaporator, foamed on three sides, ensures uniform and effective cooling. The temperature range can be electronically regulated between 2°C and 8°C to adapt the cooling capacity to specific requirements.

• Easy to use:
  The digital temperature display provides precise control over the internal temperature. An illuminated on/off switch ensures easy operation even in low light.

• Robust materials:
  Both the outer and inner materials are made of CNS (chromium-nickel steel), which makes the saladette particularly durable, hygienic and easy to clean.

• Flexible interior design:
  The saladette offers space for four GN 1/1 containers with a maximum depth of 150 mm. Up to five wire racks with tilt-proof support rails (available as accessories) can be used per door compartment. This allows for flexible configuration according to your individual requirements.

• Components that are easy to clean:
  The grease filter is located behind a lockable machine panel, is easily removable and washable. In addition, the door seals can be replaced without tools, which greatly simplifies cleaning and maintenance.

• Integrated cutting board:
  A polyethylene cutting board is integrated directly into the work surface, while the base of the saladette is designed as a tray and is tapered to ensure optimal drainage of condensation.

Technical specifications of the Saladette KBS 904

• Dimensions:

  • Width: 1365 mm
  • Depth: 700 mm
  • Height: 1345 mm

• Installation type: Floor-standing unit

• Opening system: Solid door

• Number of doors: 3

  • Door hinge: Left/Right/Right

• Temperature range: 2 °C to 8 °C

• Capacity per door: GN 1/1

• Capacity: 4 x GN 1/1, maximum container depth 150 mm

• Materials:

  • Outer material: Stainless steel
  • Inner material: Stainless steel

• Connections and energy consumption:

  • Connection type: Plug-in ready (230V)
  • Electrical connection rating: 0.235 kW
  • Voltage: 230 volts

• Weight:

  • Gross weight: 155 kg

• Standard accessories:

  • 5 intermediate walkways
  • One GN 1/1 rack per door, rilsan-coated white
  • 2 pairs of tilt-proof support rails
  • Polyethylene cutting board

Additional features and benefits

• Fan cooling:
  The saladette is equipped with a forced-air cooling system that ensures an even temperature distribution inside.

• Automatic defrosting:
  An automatic defrost function ensures low-maintenance operation and optimal efficiency.

• Dew evaporation:
  The integrated condensate evaporation prevents water from accumulating in the device and contributes to high hygiene.

• Refrigerant:
  The environmentally friendly refrigerant R 600a (isobutane) with a low GWP value of 3 is used, which makes the Saladette particularly environmentally friendly.

• High ambient temperatures:
  The Saladette can be used without problems at ambient temperatures up to 38 °C and a room humidity of up to 60%.

• Insulation:
  The insulation wall thickness is 35 mm and contributes to excellent energy efficiency and temperature stability.
