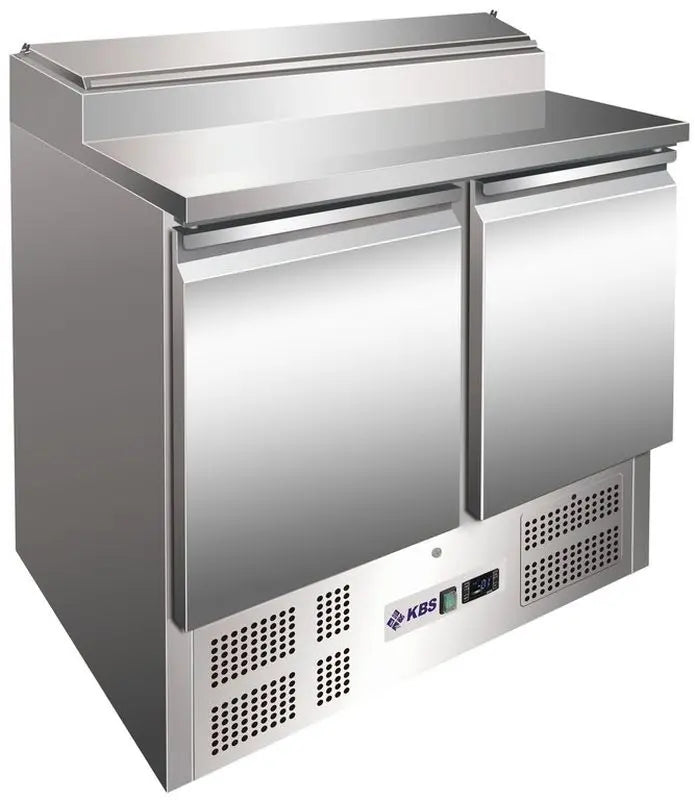

KBS 260 dispensing station - The perfect solution for your restaurant

The KBS 260 topping station is the ideal solution for professional kitchens that demand high standards for the storage and freshness of ingredients. With its sophisticated design, state-of-the-art technology, and superior build quality, this topping station offers reliable cooling performance to store your food safely and efficiently.

Main features of the KBS 260 mating station

• Efficient cooling : Equipped with a 3-sided foam-encased evaporator, the KBS 260 ensures even and reliable cooling. Thanks to the electronic thermostat, the temperature range can be precisely set from 2°C to 8°C to guarantee optimal storage conditions for your food.

• Easy to use : The digital temperature display allows for precise monitoring of the internal temperature. Furthermore, the occupancy station is equipped with an illuminated on/off switch, making operation intuitive and user-friendly.

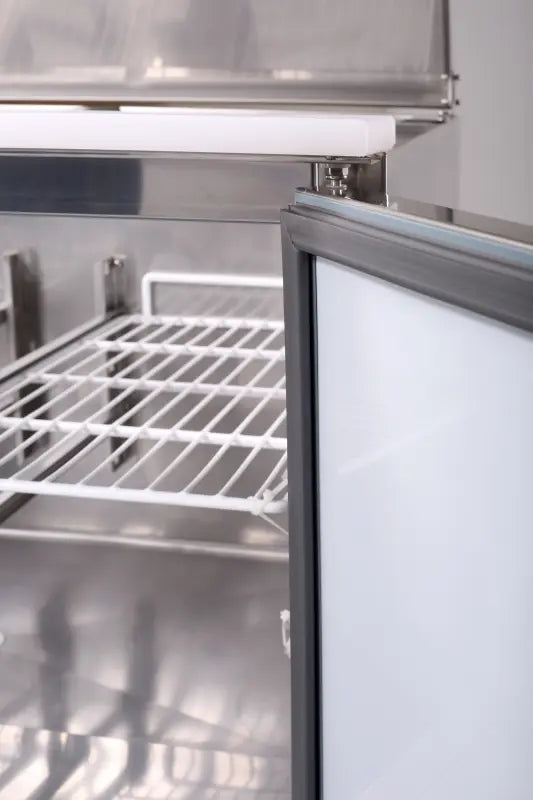

• Hygiene and maintenance : The grease filter is located behind a lockable machine panel, is easily removable and washable, which significantly simplifies maintenance. Furthermore, the door seals are easily replaceable without tools, making replacement quick and straightforward when necessary.

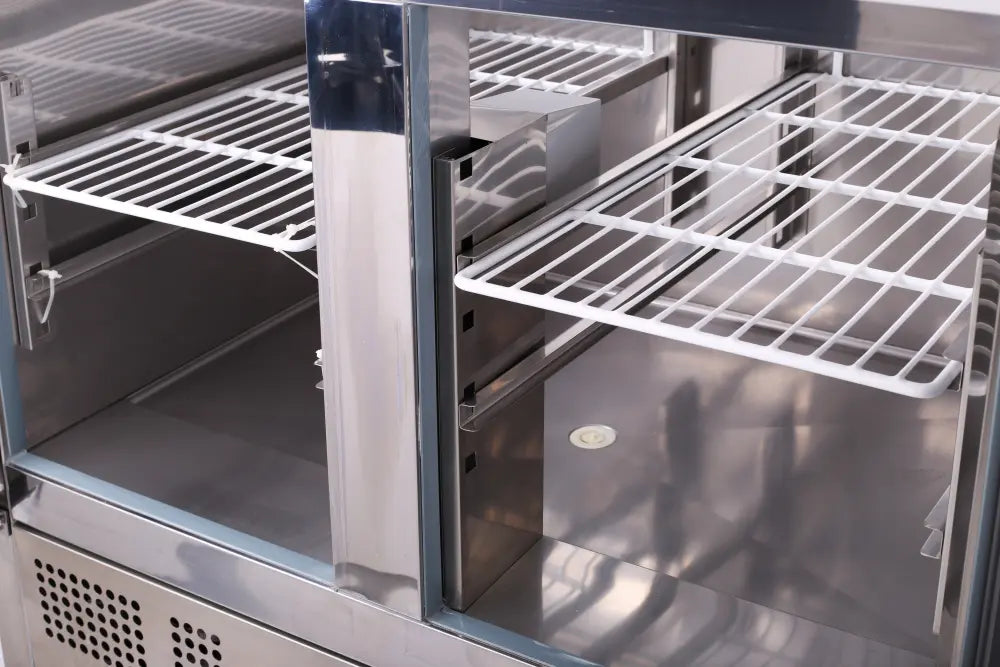

• Flexible loading options : The KBS 260 loading station offers space for up to 5 GN 1/1 racks, which can be inserted per door compartment along with 5 pairs of tilt-proof support rails as accessories. Additionally, there is a rack in the base area behind each door, which promotes optimal airflow within the refrigerated counter.

• Robust construction : Both the outer and inner material of the mating station are made of high-quality CNS (chromium-nickel steel), which is known for its durability and ease of cleaning.

• User-friendly details : The stainless steel work surface measures 900 x 320 mm (W x D) and is designed as a tray with a tapered edge and a central drain for condensate. This allows for quick and easy cleaning after use.

Technical specifications

• Dimensions (W x D x H) : 900 mm x 700 mm x 1006 mm
• Installation type : Freestanding unit with full door opening system
• Temperature range : Adjustable from 2 °C to 8 °C
• Capacity : Suitable for GN 1/1 containers, 5 GN 1/6 containers with a depth of 200 mm
• Material : CNS (stainless steel) inside and out
• Connection type : Plug-in ready (230V), electrical connection rating 0.155 kW
• Weight : 94 kg (gross weight)
• Standard accessories : 4 intermediate shelves, 1 GN 1/1 rilsan-coated white rack per door and 2 pairs of tilt-proof support rails
• Ambient temperature : Usable at room temperatures up to 30 °C and 55% relative humidity
• Cooling : Fan-assisted cooling with condensate evaporation and automatic defrosting
• Insulation wall thickness : 35 mm
• Refrigerant : R 600a (isobutane) with a GWP of 3

Advantages of the KBS 260 mating station

• Space-saving and efficient : Despite its compact dimensions, the KBS 260 offers sufficient space and flexibility for storing various container sizes.

• Energy efficiency : Thanks to the modern refrigerant R 600a and strong 35 mm insulation, the booking station operates in a particularly energy-efficient and environmentally friendly manner.

• Durability and reliability : The robust stainless steel construction and high-quality components guarantee a long service life and reliable operation in your kitchen.

• Ease of use : Easy cleaning and maintenance as well as flexible configuration make the KBS 260 an indispensable device in any catering establishment.
