KBS 360 mating station

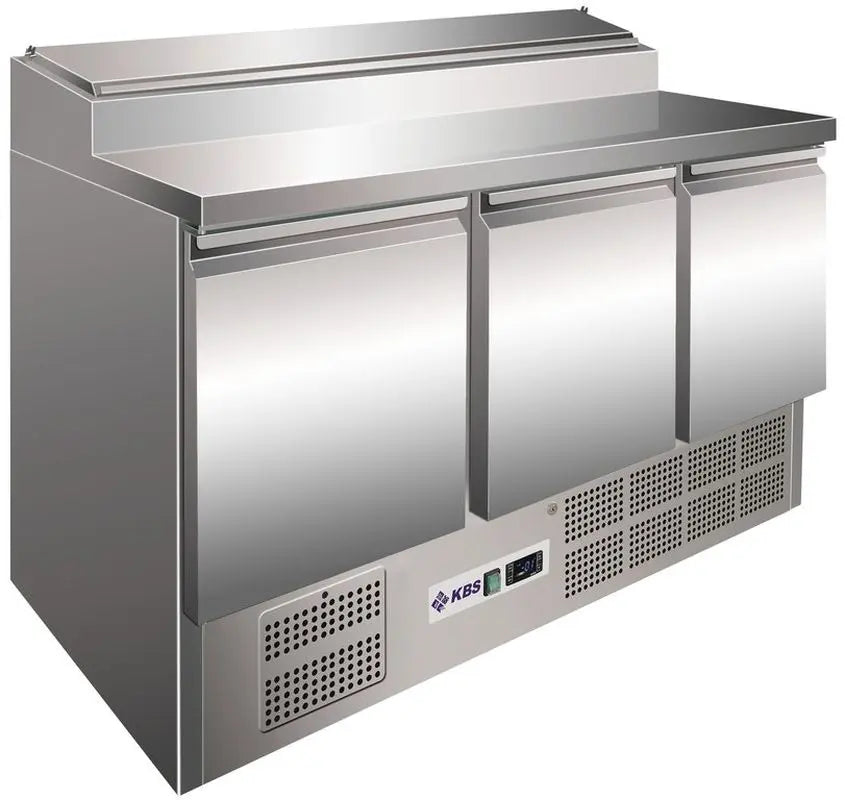

KBS 360 dispensing station – The ideal solution for professional kitchens

The KBS 360 serving station is the perfect refrigeration unit for demanding catering establishments. With its robust construction, well-designed features, and outstanding cooling performance, it offers everything you need for smooth and efficient kitchen operations. Whether in restaurants, hotels, or commercial kitchens – the KBS 360 is indispensable for the fresh storage and preparation of food.

Key features of the KBS 360 mating station

• Efficient cooling:
  The KBS 360 filling station is equipped with a 3-sided foam-encased evaporator, ensuring uniform and reliable cooling. The temperature can be precisely regulated via an electronic thermostat and read on the digital temperature display.

• User-friendly design:
  The illuminated on/off switch ensures easy operation, even in poorly lit kitchen areas. Behind the lockable machine panel is an easily removable and washable grease filter, simplifying cleaning and maintenance.

• Optimal air distribution:
  Two powerful circulating fans ensure an even distribution of cold air throughout the interior, which guarantees a constant temperature and thus the freshness of the stored food.

• High-quality workmanship:
  The dispensing station is made of robust stainless steel (chromium-nickel steel) both inside and out, which not only ensures durability but also facilitates cleaning and hygiene. The door seals are easily replaceable without tools, simplifying maintenance.

• Flexibility and versatility:
  The GN 1/1 rack size offers space for up to 5 racks per door compartment, including 5 pairs of tilt-proof support rails (available as accessories). An additional rack in the base area behind each door optimizes airflow within the unit. The filling station can be equipped with GN 1/6 containers with a depth of up to 200 mm.

Technical details of the KBS 360 document station

• External dimensions:

  • Width: 1370 mm
  • Depth: 700 mm
  • Height: 1006 mm

• Installation type: Floor-standing unit

• Opening system: Solid door

• Temperature range: from 2 °C to 8 °C

• Number of doors: 3

• Capacity per door: GN 1/1

• Connection type: Plug-in ready (230V)

• Electrical connection rating: 0.235 kW

• Voltage: 230 volts

• Gross weight: 140 kg

• Standard accessories: 7 intermediate shelves, 1 GN 1/1 wire rack per door (Rilsan coated white), 2 pairs of tilt-proof support rails

• Refrigerant: R 600a (isobutane) / GWP 3

• Insulation wall thickness: 35 mm

• Usable at ambient temperatures up to: 30 °C

• Room humidity: up to 55%

• Cooling: Fan-assisted cooling

• Dew evaporation: Yes

• Defrosting: Automatic

Advantages of the KBS 360 mating station

• Energy efficient and environmentally friendly:
  Thanks to the use of R 600a (isobutane) as a refrigerant with a low GWP (Global Warming Potential) of only 3, the KBS 360 occupancy station contributes to reducing CO2 emissions while saving energy costs.

• Durable and robust:
  The use of high-quality stainless steel for interior and exterior surfaces, as well as the strong insulation, makes the filling station extremely resistant to the challenges of everyday kitchen use.

• Maximum hygiene:
  The easily removable and washable components, as well as the simple cleaning of the smooth stainless steel surfaces, ensure compliance with the highest hygiene standards.

• Flexibility in application:
  The KBS 360 offers ample space for various GN containers and accessories, making it a versatile cooling station for a wide variety of foods.
