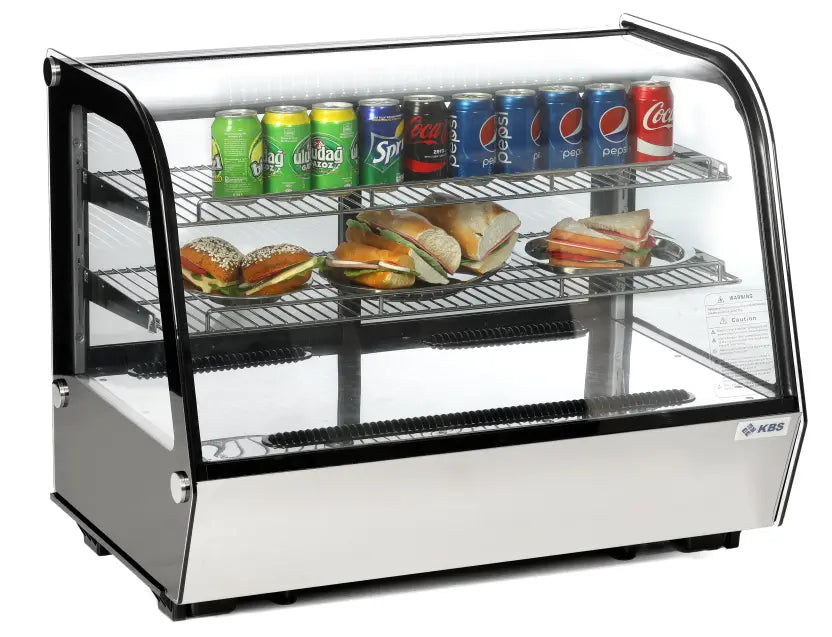

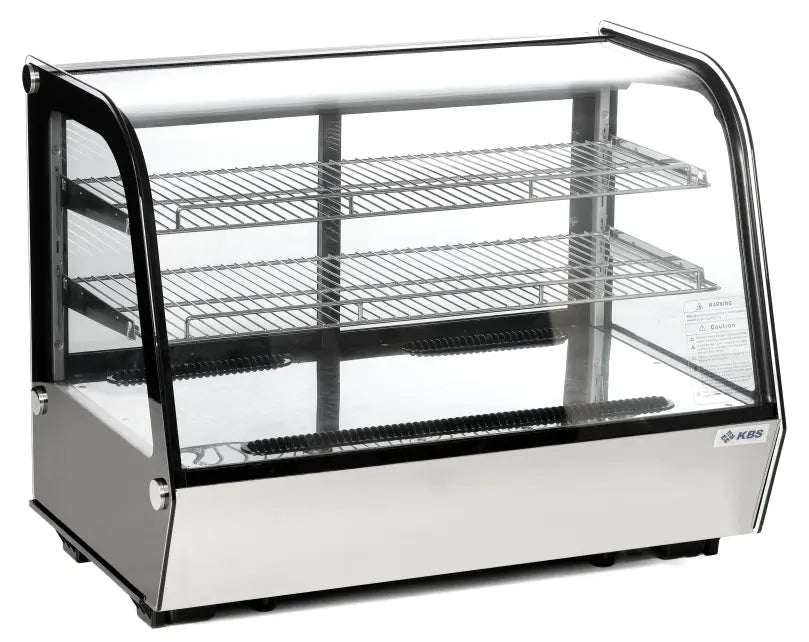

Countertop refrigerated display case ASV 900

ASV 900 countertop refrigerated display case – Elegant and functional presentation for your products

The ASV 900 countertop refrigerated display case is an ideal solution for the stylish and efficient presentation of your goods. With its modern design and advanced technology, this display case offers not only an attractive appearance but also outstanding cooling performance.

Features and functions of the ASV 900 countertop refrigerated display case

• Plug-in refrigerated display case:
  The display case is plug-and-play and therefore ready for immediate use. The forced-air cooling system ensures even cooling, keeping your products optimally fresh.

• Electronic control:
  The electronic control and digital temperature display allow you to precisely set and monitor the temperature. This ensures consistent cooling performance.

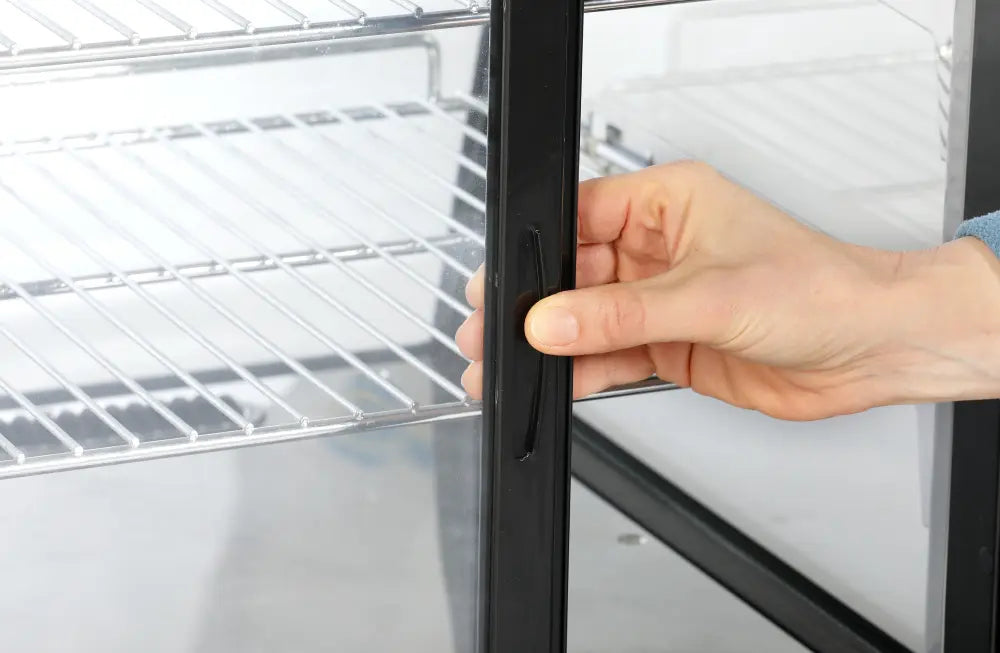

• Energy-saving insulating glass:
  The sliding insulating glass panels are not only energy-efficient, but also easily removable to facilitate cleaning of the interior.

• Practical opening:
  The opening for loading the display case is 360 mm, which allows you to conveniently display and present even slightly larger products.

• Optimal lighting:
  The separately switchable LED lighting provides pleasant illumination of the products and highlights them with even light.

• High-quality grates and grate holders:
  The racks and rack holders are made of stainless steel and are easily removable. Each rack has a raised safety bar that prevents products from falling forward during filling. The 17 mm bar spacing ensures optimal support.

• Good visibility thanks to 4-sided glazing:
  The display case is equipped with four-sided glazing, which provides an excellent view of the goods and presents your products attractively.

Technical specifications of the ASV 900 countertop refrigerated display case

• Dimensions:

  • Width: 874 mm
  • Depth: 570 mm
  • Height: 686 mm

• Installation type: Top-mounted

• Opening system: Glass sliding door

• Temperature range: 3 °C to 12 °C

• Interior lighting: Yes

• Outer material: Plastic / CHR / Glass

• Inner material: CHR / Plastic

• Connections and energy consumption:

  • Connection type: Plug-in ready (230V)
  • Electrical connection rating: 0.165 kW
  • Voltage: 230 volts

• Weight:

  • Gross weight: 71 kg

• Standard accessories:

  • 2 racks CHR

Additional features and benefits

• Fan cooling:
  The forced-air cooling ensures an even distribution of cold and prevents temperature fluctuations, thus guaranteeing constant cooling of your products.

• Automatic defrosting:
  Automatic defrosting prevents ice build-up and reduces maintenance by regulating ice formation inside the vehicle.

• Dew evaporation:
  Efficient condensate evaporation ensures hygienic handling of the condensate and minimizes maintenance work.

• Refrigerant:
  The environmentally friendly refrigerant R 600a (isobutane) with a GWP value of 3 contributes to reducing environmental impact.

• Air circulation:
  To ensure optimal and flawless operation of the refrigerated display case, proper air circulation should be ensured during filling.

The ASV 900 countertop refrigerated display case offers an elegant and effective solution for presenting and cooling your products. With its advanced technology and modern design, it is a valuable addition to any retail space.
