Countertop refrigerated display case ASV 700

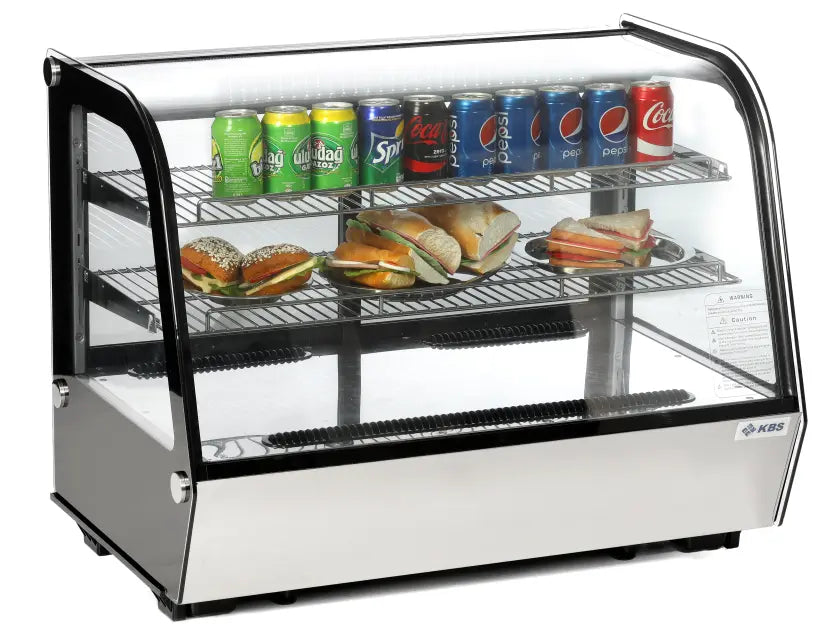

ASV 700 countertop refrigerated display case – Elegant presentation for your products

The ASV 700 countertop refrigerated display case combines modern design and advanced cooling technology to stylishly present your products and keep them optimally chilled. This plug-in, fan-assisted refrigerated display case is ideal for use in retail areas and offers both aesthetic and functional advantages.

Features and functions of the ASV 700 countertop refrigerated display case

• Efficient cooling:
  The display case is equipped with a forced-air cooling system that ensures even and constant cooling. The temperature can be electronically controlled and is adjustable within a range of 4°C to 10°C.

• Modern electronic control:
  The electronic control enables precise temperature setting and is supported by a digital temperature display that always provides a clear overview of the indoor temperature.

• Energy-saving insulating glass:
  The sliding back panels of the display case are made of energy-saving insulating glass, which not only offers excellent thermal insulation but is also easily removable to facilitate cleaning of the interior.

• Practical opening:
  The opening for loading the display case is 290 mm, which allows for easy and convenient loading of the display case.

• High-quality LED lighting:
  The separately switchable LED lighting ensures an attractive and even illumination of the displayed products and highlights them optimally.

• Robust grates and grate holders:
  The shelves and shelf holders are made of stainless steel and are easily removable. The shelves feature a raised safety bar that prevents products from falling forward when the display case is being filled. With a bar spacing of 17 mm, the shelves offer optimal support for your merchandise.

• Good visibility thanks to 4-sided glazing:
  The display case is fully glazed, providing an excellent view of the goods and presenting your products attractively.

Technical specifications of the ASV 700 countertop refrigerated display case

• Dimensions:

  • Width: 702 mm
  • Depth: 568 mm
  • Height: 686 mm

• Installation type: Top-mounted

• Opening system: Glass sliding door

• Temperature range: 4 °C to 10 °C

• Interior lighting: Yes

• Outer material: Plastic / CHR / Glass

• Inner material: CHR / Plastic

• Connections and energy consumption:

  • Connection type: Plug-in ready (230V)
  • Electrical connection rating: 0.16 kW
  • Voltage: 230 volts

• Weight:

  • Gross weight: 66 kg

• Standard accessories:

  • 2 racks CHR

Additional features and benefits

• Fan cooling:
  The forced air cooling system ensures even cooling and helps to avoid temperature fluctuations.

• Automatic defrosting:
  Automatic defrosting reduces maintenance and ensures consistent operation by preventing ice buildup inside.

• Dew evaporation:
  Efficient condensate evaporation ensures hygienic and low-maintenance handling of the condensate.

• Refrigerant:
  The environmentally friendly refrigerant R 600a (isobutane) with a GWP value of 3 contributes to reducing environmental impact.

• Air circulation:
  When filling the refrigerated display case, care should be taken to ensure proper air circulation in order to guarantee optimal cooling performance.

The ASV 700 countertop refrigerated display case is a stylish and functional solution for presenting your products. With its elegant design and modern features, it offers both aesthetic and practical advantages for your sales area.
